For use in signal distribution systems to split the amplified signal for the mutiple inside antennas with minimum signal loss
$75.00

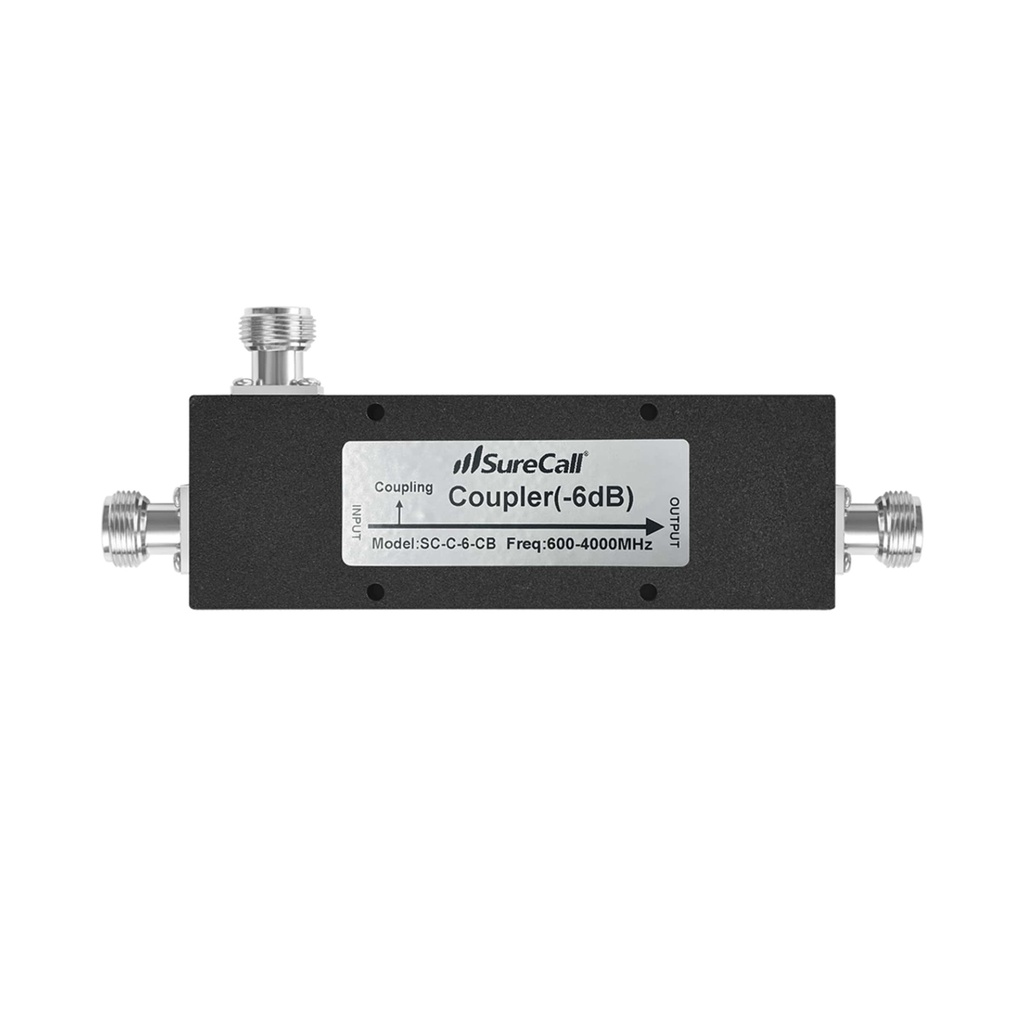

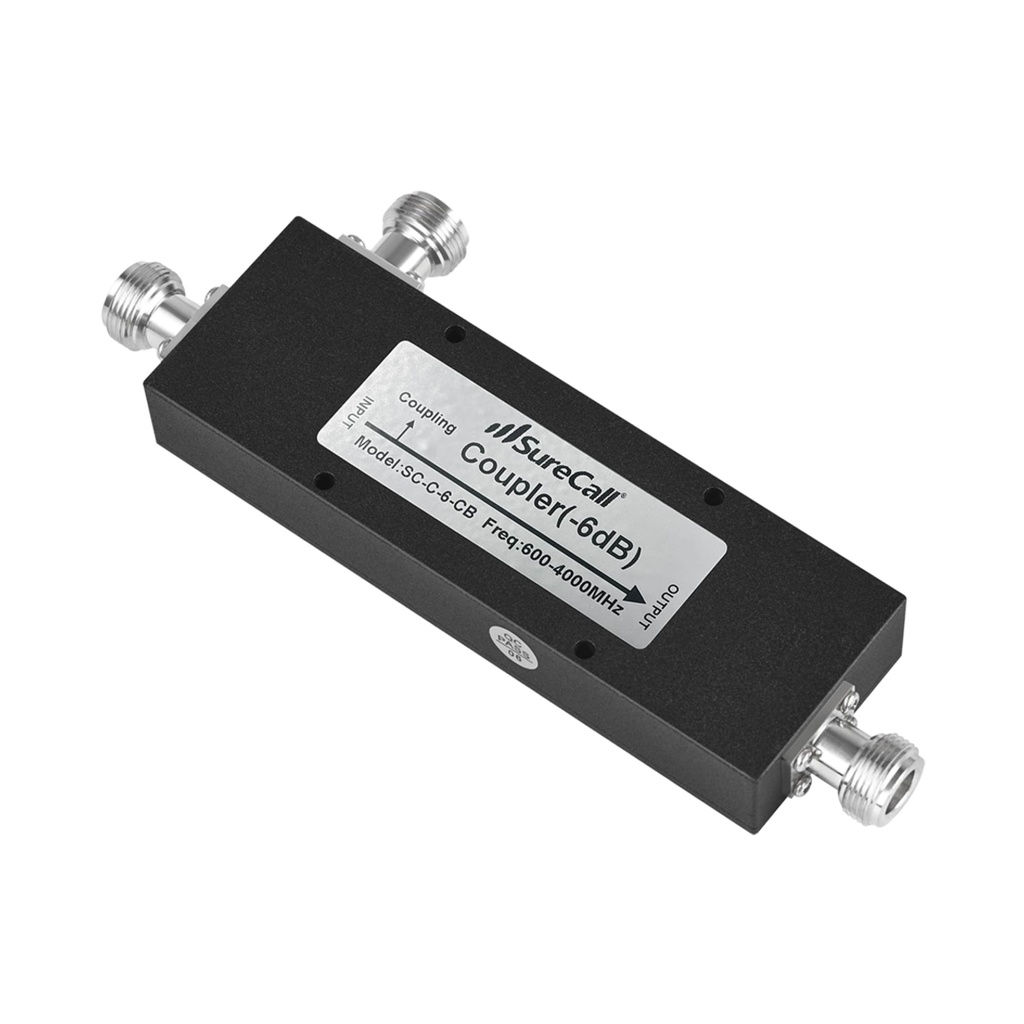

SureCall offers couplers in various options, including -6 dB, -10 dB, -15 dB, and -20 dB, all compatible with 2G, 3G, 4G, and 5G signal boosters across the 600 MHz to 2700 MHz range for all North American carriers. These couplers, also known as taps, play a crucial role in maintaining signal strength in a cell phone signal booster deployment with a series of indoor antennas covering a considerable distance. The purpose of these components is to unevenly distribute the incoming and outgoing signals, minimizing signal loss from one port. This ensures that the subsequent broadcast antenna in the setup receives a satisfactory signal despite the inherent signal loss from cables and multiple antennas.
Part Number | SC-C-6 |
Type | -6 dB Coupler |
Insertion Loss | ≤1.7 dB |
Coupling Degree (dB) | -6dB |
Coupling Accuracy (±) | 1.0 |
Isolation | ≥25 |
IP Grade | IP64 |
Coupling Port Loss | 6 ± 0.6 dB |
Directivity | ≥20 dB |
Frequency Range | 600 – 2700 MHz |
VSWR | ≤1.3:1 |
Impedance | 50 Ohm |
Power Capacity | 200W |
Connector | N-Female |
Operation Temperature | -31°F to 140°F |
Dimensions | 120 x 40 x 17 mm (Without Connectors) |
Weight | 7.4 oz |
Colour | Black |
